Hood Milano Wall</br>2456 911 - 2456 901 - 2457 901

Hood Milano Wall
2456 911 - 2456 901 - 2457 901

Foster Milano

2456 911 - 2456 901 - 2457 901

Code: 2456 911 - 30"
Code: 2456 901 - 36"
Code: 2457 901 - 48"

Wall-mounted suction hood
Satin finish stainless steel
4 speed
Aluminium die-cast motor housing

Request information
Find a dealer

Details Technical data

Details

Code product2456911-2456901-2457901

Hood typeWall-mounted suction Hood

Hood finishingSatin Finish stainless steel

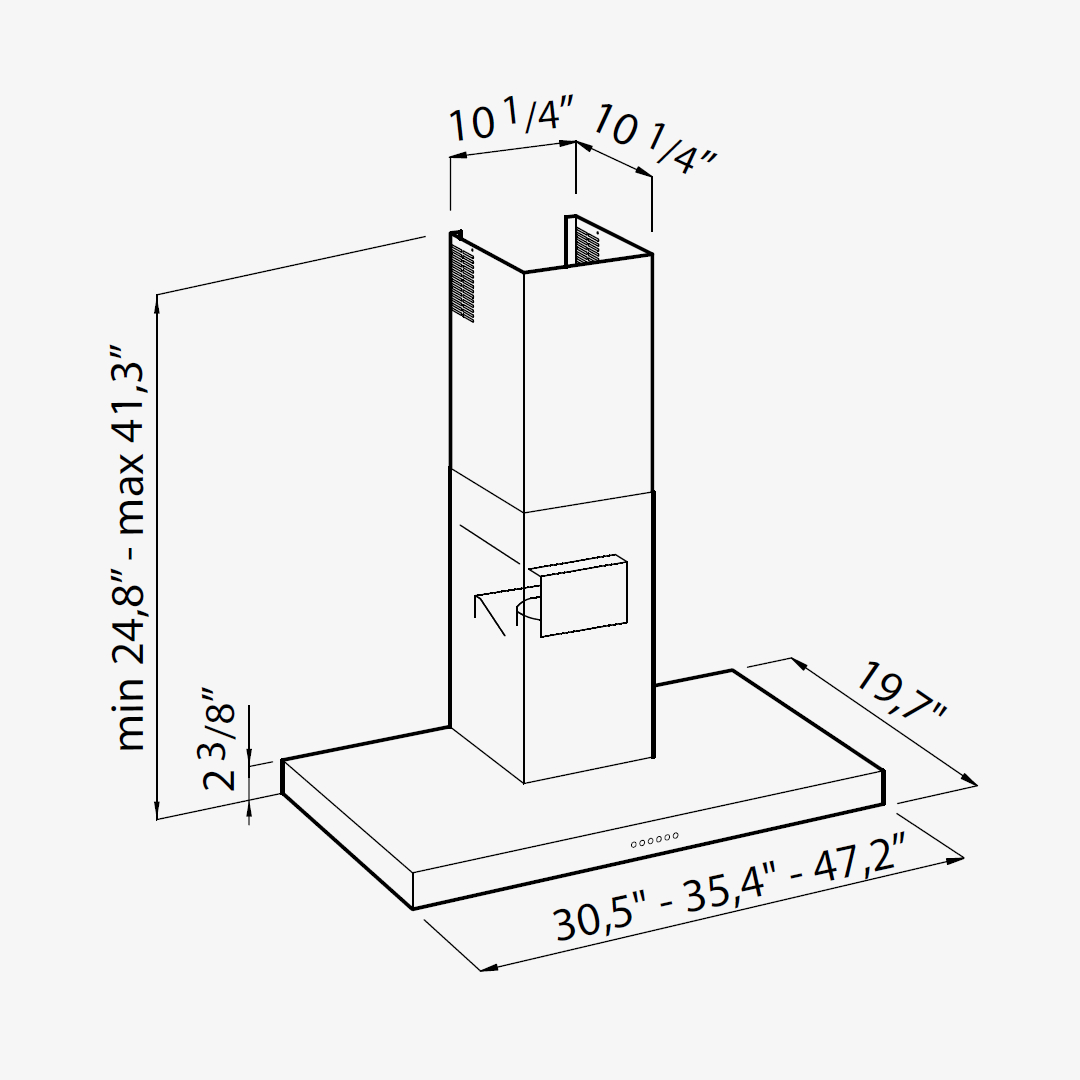

Dimensions2456 911 (30"): 30.5" x 19.7" x min 24.8" / max 41.3"
2456 901 (36"): 35.4" x 19.7" x min 24.8" / max 41.3"
2457 901 (48"): 47.2" x 19.7" x min 24.8" / max 41.3"

Control typeButton panel

Speeed4 speed

Grease filtersFilter in anodized aluminium (5+1 layers)

Charcoal filtersOptional

Lighting2 x 2.1 W Led spotlight - 4,000°K

Delay off timerYes

Light switchYes

Air Outlet3. 5 ^29/32“

ModelAluminium die-cast motor housing

Air flow rate600 CFM

Pressure680 Pa

Noise level64 dBA

Electrical requirements120VAC – 60Hz

Max Amp usage, power rating3,5A

AccessoriesCharcoal filters kit - 9700 901

CertificationsCSA Certified for US & Canada

Technical data

Documents

Technical Sheet

pdf

Installation instructions

pdf

3D Model

ZIP
