Details

Alternatives

Details

Technical Sheetpdf

Installation instructionsPDF

3D Modelzip

Code product

2458901

Material

AISI 304 stainless steel

Texture

Satin

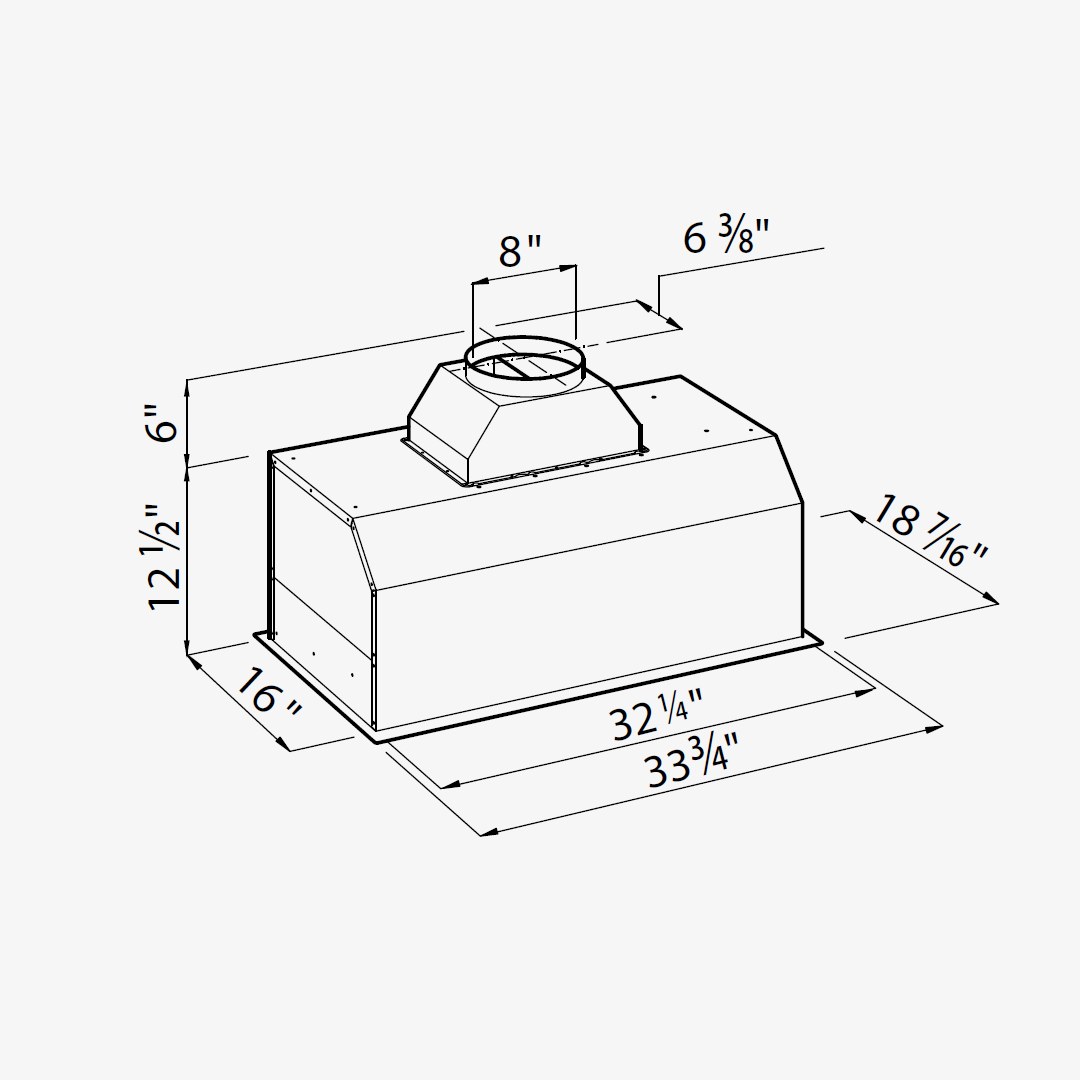

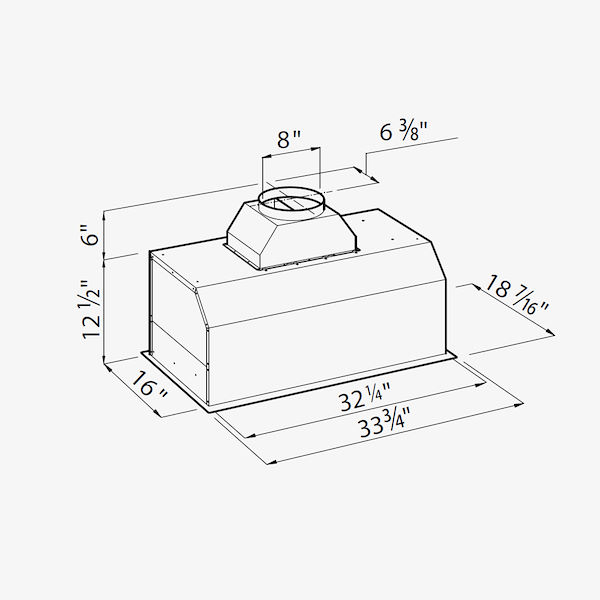

Dimensions

33 ^3/4” x 16″

Cut out

32^13/32" x 16^3/16"

Control type

Button panel

Speeed

4 speed

Grease filters

commercial style buffle filters

Charcoal filters

Optional

Lighting

2x4W Led spotlight - 5,000°K

Delay off timer

Yes

Light switch

Yes

Extractable oil collector

Yes

Air Outlet

ø 8″

Motor

Air flow rate

1100 CFM

Pressure

800 Pa

Noise level

66 dBA

Electrical requirements

120VAC – 60Hz

Max Amp usage, power rating

Accessories

Charcoal filters kit - 9700 900

Certifications

CSA Certified for US & Canada

Alternatives

Hood Quadra
2458 931

Quadra Hood 27.5"2458 911

Hood Quadra
2458 921

Quadra

Hood Quadra 32″

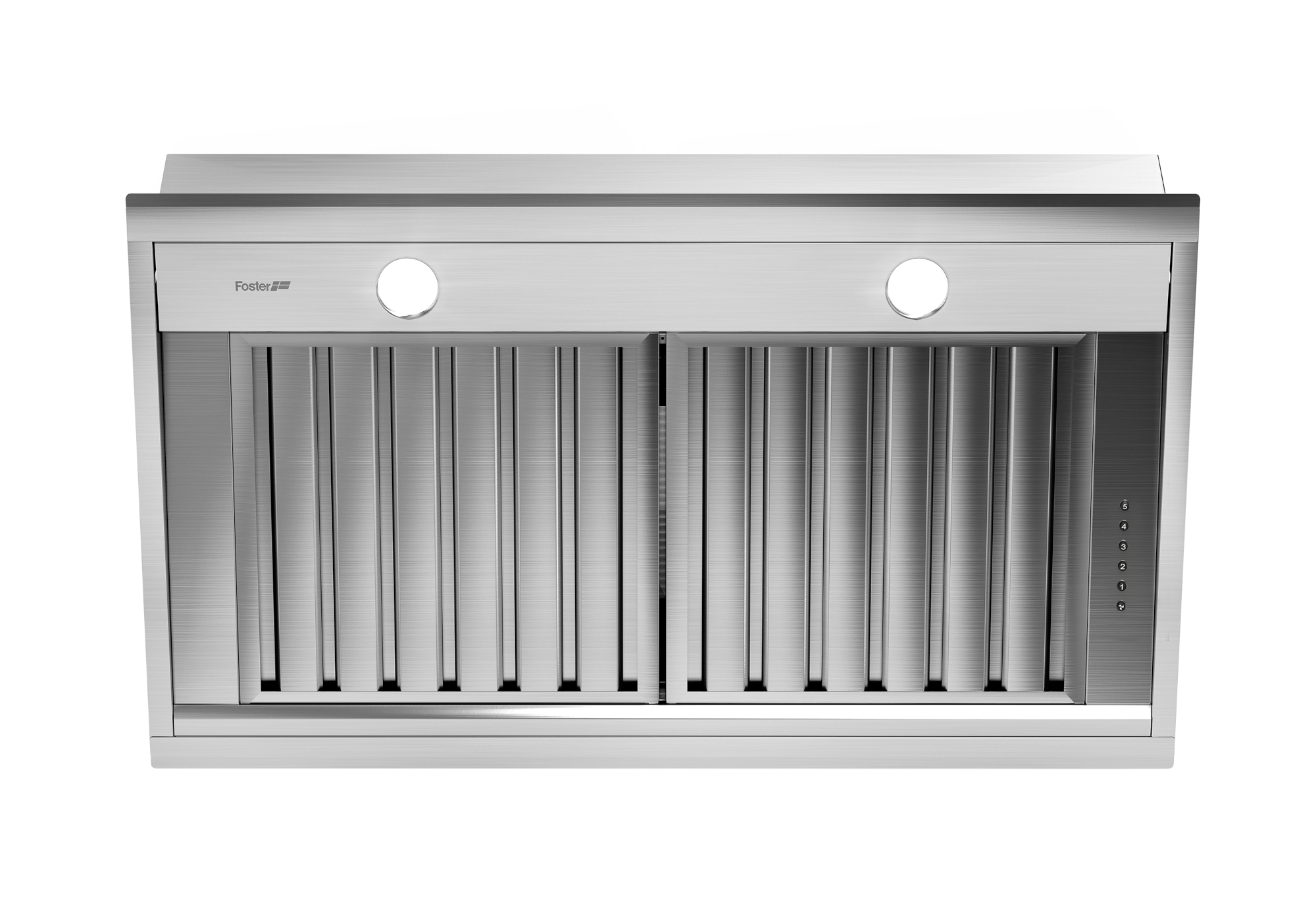

Name: Hood Quadra 32″
Brand: Quadra
SKU: 2458 901

2458 901Wall-mounted suction hood
Satin finish stainless steel
4 speed
EBM Dual motor

Gallery
